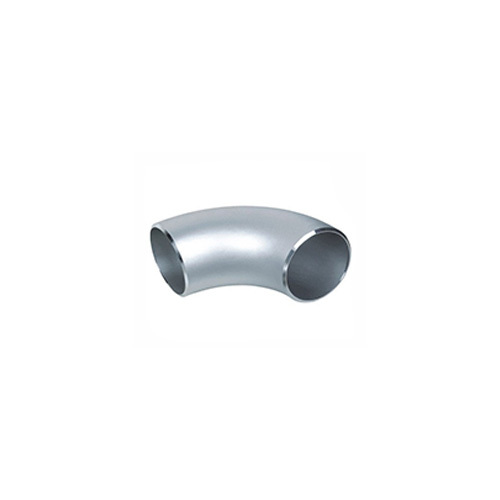

Stainless Steel Pipe Elbow

Get a Price/Quote

Product Details:

Yield Strength 205 MPa (min)
Sealing Type Metal to Metal
Bend Radius 1.0D, 1.5D, or Custom
Connection Type Butt Weld
Tensile Strength 515 MPa (min)
Diameter DN15 to DN1200
Temperature Range -196C to 870C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Stainless Steel Pipe Elbow Price And Quantity

Minimum Order Quantity 100 Piece

Manufacturing Process Seamless / ERW / Welded
Corrosion Resistance Excellent
Packaging Type Wooden Box, Carton, or as required
Lead Time Ready Stock / 1-2 Weeks for Custom
Inspection 100% Radiography / Hydrostatic Tested
Weight Varies with size and thickness
Customisation Available as per drawing / specifications
End Type Beveled
Finish Bright / Mirror / Matte

Stainless Steel Pipe Elbow Product Specifications

Application Oil & Gas, Water, Chemical, Food Industry
Surface Treatment Polished / Pickled
Thickness 2 mm to 10 mm (customizable)
Standard ASTM A403 / ASME SA403
Thread Type Not Threaded
Tolerance 1 mm
Material Grade 304, 304L, 316, 316L, 321, 347
Color Silver
Flexibility Rigid
Outer Diameter 1/2 inch to 48 inch
Section Shape Round
Usage Plumbing, Pipeline, Industrial, Chemical Plants
Length Custom as per requirement
Temperature Range -196C to 870C
Bend Radius 1.0D, 1.5D, or Custom
Sealing Type Metal to Metal
Connection Welded
Product Type Pipe Elbow
Shape Elbow (90 Degree)
Material Stainless Steel
Yield Strength 205 MPa (min)
Diameter DN15 to DN1200
Connection Type Butt Weld
Rated Pressure SCH10 to SCH160, XXS
Tensile Strength 515 MPa (min)

Manufacturing Process Seamless / ERW / Welded
Corrosion Resistance Excellent
Packaging Type Wooden Box, Carton, or as required
Lead Time Ready Stock / 1-2 Weeks for Custom
Inspection 100% Radiography / Hydrostatic Tested
Weight Varies with size and thickness
Customisation Available as per drawing / specifications
End Type Beveled
Finish Bright / Mirror / Matte

Stainless Steel Pipe Elbow Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Other Products in 'Buttweld Pipe Fittings' category

Corbon Pipe Bends Minimum Order Quantity : 100 Surface Treatment : Other, Black Painted, Galvanized, AntiRust Oil Standard : Other, ANSI, ASTM, DIN, JIS, BS Thickness : 3mm to 12mm Application : other, Industrial, Construction, Plumbing, Gas & Oil Industries Material Grade : ASTM A234 WPB, A420 WPL6, others Flexibility : Rigid Color : Black Tolerance : 1% or as per standard Length : As required or standard length Temperature Range : 20C to 425C Outer Diameter : 21.3mm to 609.6mm Section Shape : Round Usage : Pipeline, Oil & Gas, Water Supply, Construction Coating Type : Black Paint, Anticorrosive Coating Connection : Other, Welded Sealing Type : Metal to Metal Yield Strength : 240 MPa Min. Material : Carbon Steel Product Type : Other, Corbon Pipe Bend Shape : Other, Bend Diameter : 1/2 inch to 24 inch Connection Type : Butt Weld Tensile Strength : 415 MPa Min. Rated Pressure : Class 150# to 2500# Bend Radius : 1D, 1.5D, 2D, 3D and custom as required

Send Inquiry

Carbon Steel Pipe Elbow Minimum Order Quantity : 100 Surface Treatment : Other, Black Painted, Antirust Coated Standard : Other, ASTM A234 / ASME B16.9 Thickness : 3 mm to 25 mm Application : other, Water, Gas, Oil Transmission Material Grade : A234 WPB, A420 WPL6 Flexibility : Rigid Color : Black Tolerance : 0.05 mm Length : As Per Requirement Temperature Range : 30C to +425C Outer Diameter : 1/2 inch to 48 inch Section Shape : Round Usage : Pipeline Fittings, Oil & Gas, Power Plants Coating Type : Black Varnish Connection : Other, Welded Sealing Type : Metal to Metal Yield Strength : 240 MPa Material : Carbon Steel Product Type : Other, Pipe Elbow Shape : Other, Elbow (Curved) Diameter : DN15DN1200 Connection Type : Butt Weld Tensile Strength : 415 MPa Rated Pressure : PN10PN100, SCH10SCH160 Bend Radius : 1.5D, 3D

Send Inquiry

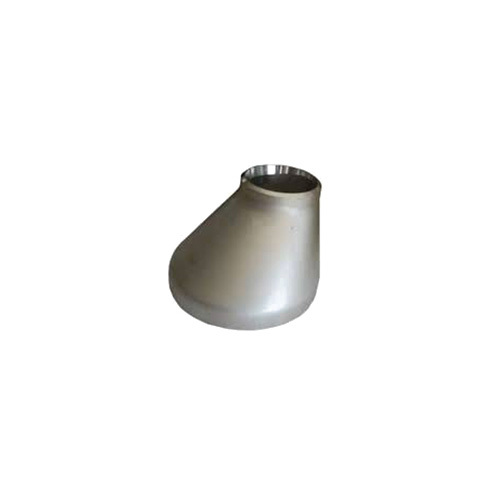

Stainless Steel Pipe Reducer Minimum Order Quantity : 100 Surface Treatment : Other, Polished / Pickled Standard : Other, ASTM A403 / ASME B16.9 Thickness : 1.5 mm 12 mm Application : other, Petrochemical, Water Supply, Gas, Oil, Chemical Industry Material Grade : SS304 / SS316 / SS316L / SS304L Flexibility : Rigid Color : Silver Tolerance : 0.5 mm Length : As per standard / customer requirement Temperature Range : 196C to +600C Outer Diameter : 1/2 to 48 (DN15 to DN1200) Section Shape : Round Usage : Pipe Connection / Flow Reduction Coating Type : Uncoated / Selffinish Connection : Other, Welded Sealing Type : Metal to Metal Yield Strength : 205 MPa min Material : Stainless Steel Product Type : Other, Pipe Reducer Shape : Other, Concentric / Eccentric Diameter : 15 mm 1200 mm Connection Type : Butt Weld Tensile Strength : 515 MPa min Rated Pressure : Sch 10S to Sch 160

Send Inquiry

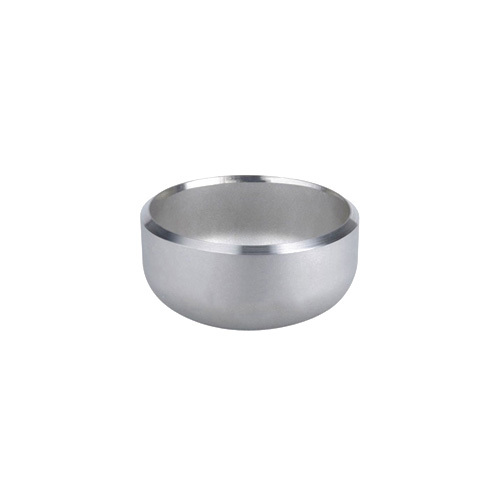

Stainless Steel Pipe End Cap Minimum Order Quantity : 100 Surface Treatment : Other, Polished Standard : Other, ASTM A403 / ASME SA403 Thickness : 2 mm 12 mm Application : other, Industrial, Plumbing, Chemical, Food Processing Material Grade : SS304/SS316/SS316L Flexibility : Rigid Color : Silver Tolerance : 0.1 mm Length : Custom or as required Temperature Range : 20C to 425C Outer Diameter : 1/2 inch to 24 inch (DN15DN600) Section Shape : Other, Circular Usage : Pipe Fitting, End Closure Coating Type : No coating Connection : Other, Welded Sealing Type : Metal to Metal Yield Strength : 205 MPa (min) Material : Stainless Steel Product Type : Other, Pipe End Cap Shape : Round Diameter : As per specification Connection Type : Butt Weld Tensile Strength : 520 MPa (min) Rated Pressure : Up to 40 Bar

Send Inquiry
