Carbon Steel Pipe Elbow

Get a Price/Quote

Product Details:

Temperature Range -30C to +425C
Coating Type Black Varnish
Connection Type Butt Weld
Diameter DN15-DN1200
Flexibility Rigid
Bend Radius 1.5D, 3D
Yield Strength 240 MPa
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Carbon Steel Pipe Elbow Price And Quantity

Minimum Order Quantity 100 Piece

Hydrostatic Test Available on request
Weight Depends on size and thickness
Inspection 100% Visual and Dimensional
Marking Specification and Heat Number
End Preparation Beveled Ends as per ASME B16.25
Hardness 200 HB
Manufacturing Process Hot Forming / Mandrel Method
Packaging Wooden Cases or Pallets
Impact Test Performed as per client requirement
Elbow Angle 45, 90, 180
Corrosion Resistance Good with surface coating

Carbon Steel Pipe Elbow Product Specifications

Diameter DN15-DN1200
Section Shape Round
Product Type Pipe Elbow
Usage Pipeline Fittings, Oil & Gas, Power Plants
Surface Treatment Black Painted, Anti-rust Coated
Length As Per Requirement
Bend Radius 1.5D, 3D
Yield Strength 240 MPa
Sealing Type Metal to Metal
Flexibility Rigid
Tolerance 0.05 mm
Connection Welded
Standard ASTM A234 / ASME B16.9
Tensile Strength 415 MPa
Color Black
Thickness 3 mm to 25 mm
Material Carbon Steel
Shape Elbow (Curved)
Material Grade A234 WPB, A420 WPL6
Temperature Range -30C to +425C
Outer Diameter 1/2 inch to 48 inch
Coating Type Black Varnish
Application Water, Gas, Oil Transmission
Connection Type Butt Weld
Rated Pressure PN10-PN100, SCH10-SCH160

Hydrostatic Test Available on request
Weight Depends on size and thickness
Inspection 100% Visual and Dimensional
Marking Specification and Heat Number
End Preparation Beveled Ends as per ASME B16.25
Hardness 200 HB
Manufacturing Process Hot Forming / Mandrel Method
Packaging Wooden Cases or Pallets
Impact Test Performed as per client requirement
Elbow Angle 45, 90, 180
Corrosion Resistance Good with surface coating

Carbon Steel Pipe Elbow Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Other Products in 'Buttweld Pipe Fittings' category

Corbon Pipe Bends Minimum Order Quantity : 100 Standard : Other, ANSI, ASTM, DIN, JIS, BS Connection : Other, Welded Tolerance : 1% or as per standard Tensile Strength : 415 MPa Min. Product Type : Other, Corbon Pipe Bend Usage : Pipeline, Oil & Gas, Water Supply, Construction Section Shape : Round Diameter : 1/2 inch to 24 inch Length : As required or standard length Surface Treatment : Other, Black Painted, Galvanized, AntiRust Oil Sealing Type : Metal to Metal Yield Strength : 240 MPa Min. Flexibility : Rigid Application : other, Industrial, Construction, Plumbing, Gas & Oil Industries Outer Diameter : 21.3mm to 609.6mm Temperature Range : 20C to 425C Rated Pressure : Class 150# to 2500# Connection Type : Butt Weld Material : Carbon Steel Thickness : 3mm to 12mm Color : Black Shape : Other, Bend Material Grade : ASTM A234 WPB, A420 WPL6, others Coating Type : Black Paint, Anticorrosive Coating Bend Radius : 1D, 1.5D, 2D, 3D and custom as required Thread Type : Not Applicable (Butt Weld)

Send Inquiry

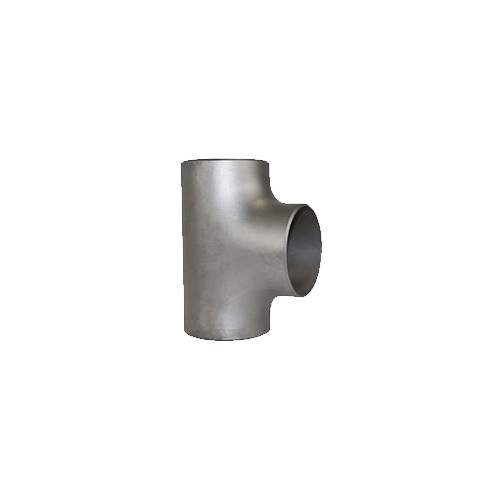

Stainless Steel Pipe Tee Minimum Order Quantity : 100 Standard : Other, ASTM A403, ASME B16.9 Connection : Other, Welded Tolerance : 0.5 mm Tensile Strength : 515 MPa minimum Product Type : Other, Pipe Tee Usage : Industrial Pipe Fittings Section Shape : Round Diameter : As per requirement Length : Customized Surface Treatment : Other, Polished Sealing Type : Metal to Metal Yield Strength : 205 MPa minimum Flexibility : Rigid Application : other, Plumbing, Chemical, Petrochemical, Oil & Gas, Water Supply Outer Diameter : 1/2 inch 24 inch Temperature Range : 20C to +220C Rated Pressure : Up to 6000 psi Connection Type : Butt Weld Material : Stainless Steel Thickness : 2 mm 10 mm Color : Silver Shape : Other, Tshaped Material Grade : SS304, SS316, SS316L, SS321 Coating Type : Uncoated Bend Radius : Standard

Send Inquiry

Stainless Steel Pipe Elbow Minimum Order Quantity : 100 Standard : Other, ASTM A403 / ASME SA403 Connection : Other, Welded Tolerance : 1 mm Tensile Strength : 515 MPa (min) Product Type : Other, Pipe Elbow Usage : Plumbing, Pipeline, Industrial, Chemical Plants Section Shape : Round Diameter : DN15 to DN1200 Length : Custom as per requirement Surface Treatment : Other, Polished / Pickled Sealing Type : Metal to Metal Yield Strength : 205 MPa (min) Flexibility : Rigid Application : other, Oil & Gas, Water, Chemical, Food Industry Outer Diameter : 1/2 inch to 48 inch Temperature Range : 196C to 870C Rated Pressure : SCH10 to SCH160, XXS Connection Type : Butt Weld Material : Stainless Steel Thickness : 2 mm to 10 mm (customizable) Color : Silver Shape : Other, Elbow (90 Degree) Material Grade : 304, 304L, 316, 316L, 321, 347 Bend Radius : 1.0D, 1.5D, or Custom Thread Type : Not Threaded

Send Inquiry

Stainless Steel Pipe Reducer Minimum Order Quantity : 100 Standard : Other, ASTM A403 / ASME B16.9 Connection : Other, Welded Tolerance : 0.5 mm Tensile Strength : 515 MPa min Product Type : Other, Pipe Reducer Usage : Pipe Connection / Flow Reduction Section Shape : Round Diameter : 15 mm 1200 mm Length : As per standard / customer requirement Surface Treatment : Other, Polished / Pickled Sealing Type : Metal to Metal Yield Strength : 205 MPa min Flexibility : Rigid Application : other, Petrochemical, Water Supply, Gas, Oil, Chemical Industry Outer Diameter : 1/2 to 48 (DN15 to DN1200) Temperature Range : 196C to +600C Rated Pressure : Sch 10S to Sch 160 Connection Type : Butt Weld Material : Stainless Steel Thickness : 1.5 mm 12 mm Color : Silver Shape : Other, Concentric / Eccentric Material Grade : SS304 / SS316 / SS316L / SS304L Coating Type : Uncoated / Selffinish

Send Inquiry
