Corbon Pipe Bends

Get a Price/Quote

Product Details:

Diameter 1/2 inch to 24 inch
Yield Strength 240 MPa Min.
Connection Type Butt Weld
Flexibility Rigid
Bend Radius 1D, 1.5D, 2D, 3D and custom as required
Tolerance 1% or as per standard
Coating Type Black Paint, Anti-corrosive Coating
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Corbon Pipe Bends Price And Quantity

Minimum Order Quantity 100 Piece

Packaging Wooden Cases, Bundles, Palletized
Hardness Max 197 HB
Minimum Order Quantity As per customer requirement
Impact Strength As per ASTM Standard
Manufacturing Process Hot Induction Bending, Cold Bending, Mandrel Method
Test Certificates EN 10204 3.1 / 3.2 Available
End Type Beveled, Plain
Corrosion Resistance High (With proper coating)
Inspection 100% Radiography, UT, MPI (If Required)

Corbon Pipe Bends Product Specifications

Material Carbon Steel
Temperature Range -20C to 425C
Sealing Type Metal to Metal
Outer Diameter 21.3mm to 609.6mm
Material Grade ASTM A234 WPB, A420 WPL6, others
Thread Type Not Applicable (Butt Weld)
Tensile Strength 415 MPa Min.
Surface Treatment Black Painted, Galvanized, Anti-Rust Oil
Application Industrial, Construction, Plumbing, Gas & Oil Industries
Product Type Corbon Pipe Bend
Coating Type Black Paint, Anti-corrosive Coating
Connection Type Butt Weld
Flexibility Rigid
Rated Pressure Class 150# to 2500#
Section Shape Round
Usage Pipeline, Oil & Gas, Water Supply, Construction
Color Black
Tolerance 1% or as per standard
Bend Radius 1D, 1.5D, 2D, 3D and custom as required
Standard ANSI, ASTM, DIN, JIS, BS
Diameter 1/2 inch to 24 inch
Length As required or standard length
Yield Strength 240 MPa Min.
Shape Bend
Thickness 3mm to 12mm
Connection Welded

Packaging Wooden Cases, Bundles, Palletized
Hardness Max 197 HB
Minimum Order Quantity As per customer requirement
Impact Strength As per ASTM Standard
Manufacturing Process Hot Induction Bending, Cold Bending, Mandrel Method
Test Certificates EN 10204 3.1 / 3.2 Available
End Type Beveled, Plain
Corrosion Resistance High (With proper coating)
Inspection 100% Radiography, UT, MPI (If Required)

Corbon Pipe Bends Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Other Products in 'Buttweld Pipe Fittings' category

Stainless Steel Pipe Cross Minimum Order Quantity : 100 Yield Strength : 205 MPa min Length : Custom as per requirement Standard : Other, ASTM A403 / ASME SA403 Diameter : 12.7 mm 609.6 mm Connection : Other, Buttweld / Socket Weld / Threaded Shape : Other, Cross (Fourway) Thickness : 2 mm 10 mm (customizable) Section Shape : Round Flexibility : Rigid Rated Pressure : Up to 6000 PSI Connection Type : Welded / Threaded Tolerance : 0.1 mm Color : Silver Usage : Industrial piping, fluid distribution Application : other, Oil & Gas, Petrochemical, Power, Water Treatment Surface Treatment : Other, Polished / Pickled Coating Type : No coating (natural finish) Product Type : Other, Stainless Steel Pipe Cross Sealing Type : Metaltometal Outer Diameter : 1/2 24 (customizable) Material : Stainless Steel Temperature Range : 20C to +550C Tensile Strength : 520 MPa min Material Grade : SS304, SS316, SS316L, SS321

Send Inquiry

Stainless Steel Pipe Tee Minimum Order Quantity : 100 Yield Strength : 205 MPa minimum Length : Customized Standard : Other, ASTM A403, ASME B16.9 Diameter : As per requirement Connection : Other, Welded Shape : Other, Tshaped Thickness : 2 mm 10 mm Section Shape : Round Flexibility : Rigid Rated Pressure : Up to 6000 psi Connection Type : Butt Weld Tolerance : 0.5 mm Color : Silver Usage : Industrial Pipe Fittings Application : other, Plumbing, Chemical, Petrochemical, Oil & Gas, Water Supply Surface Treatment : Other, Polished Coating Type : Uncoated Product Type : Other, Pipe Tee Sealing Type : Metal to Metal Outer Diameter : 1/2 inch 24 inch Material : Stainless Steel Temperature Range : 20C to +220C Tensile Strength : 515 MPa minimum Material Grade : SS304, SS316, SS316L, SS321 Bend Radius : Standard

Send Inquiry

Butt Weld Split Tee Minimum Order Quantity : 100 Yield Strength : 205 MPa to 415 MPa (Depending On Material) Length : As per Standard / Custom Standard : Other, ASME B16.9 / MSSSP75 / ASTM / DIN / JIS Diameter : As per Specification (Up to 1200 mm) Connection : Other, Butt Welded Shape : Other, Tee (Split Tee) Thickness : Sch 10 to Sch 160 or Customized Section Shape : Round Flexibility : Rigid Rated Pressure : Up to 6000 PSI Connection Type : Butt Weld Tolerance : 0.5 mm Color : Metallic / Black Usage : Pipeline Branching / Oil & Gas / Petrochemical / Power Plants Application : other, Pipeline Connections / Pressure Vessels / Water Supply Lines Surface Treatment : Other, Shot Blasted / Pickled / Black Painted / Antirust Coated Coating Type : Epoxy / Paint / Antirust Product Type : Other, Butt Weld Split Tee Sealing Type : Metal to Metal Outer Diameter : 1/2 to 48 (DN15DN1200) Material : Other , Stainless Steel / Carbon Steel / Alloy Steel Temperature Range : 20C to 800C Tensile Strength : 415 MPa to 590 MPa (Depending On Material) Material Grade : A234 WPB, A403 WP304/316, A860 WPHY52/60, etc. Bend Radius : As per Standard

Send Inquiry

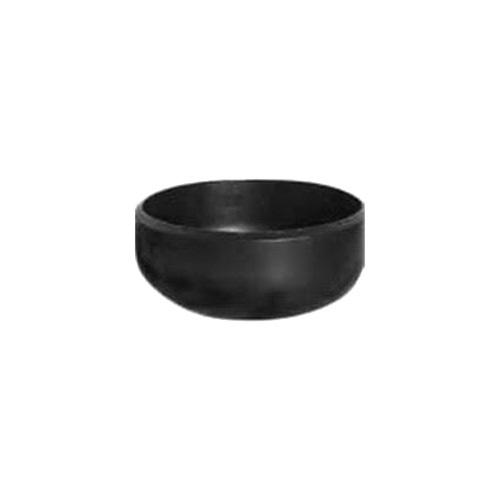

Carbon Steel Pipe End Cap Minimum Order Quantity : 100 Yield Strength : 240 MPa (Min) Length : Customizable / Standard as per pipe size Standard : Other, ANSI B16.9, ASME, DIN, JIS Diameter : 1/2 48 Connection : Other, Welded Shape : Round Thickness : 2 mm 40 mm Section Shape : Other, Circular Flexibility : Rigid Rated Pressure : Sch 10 to Sch 160 Connection Type : Butt Weld Tolerance : 0.5 mm Color : Black Usage : Sealing pipe ends, pressure containment Application : other, Oil & Gas, Water Supply, Petrochemical, Power Plant Surface Treatment : Other, Black Painted / AntiRust Oil Coated Coating Type : Black Paint, AntiRust Oil Product Type : Other, Pipe End Cap Sealing Type : Butt Weld Seal Outer Diameter : 21.3 mm 1219 mm Material : Carbon Steel Temperature Range : 20C to 425C Tensile Strength : 415 MPa (Min) Material Grade : ASTM A234 WPB, A106, A53

Send Inquiry
