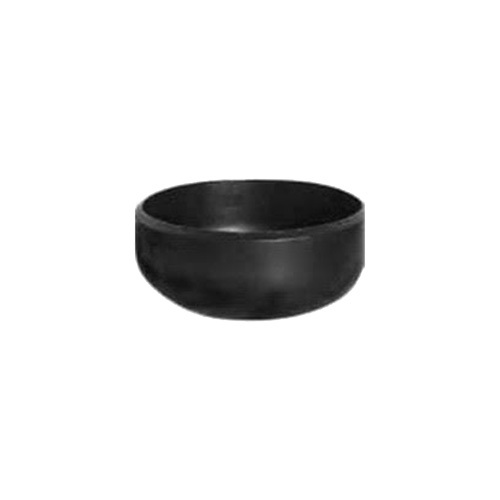

Carbon Steel Pipe End Cap

Get a Price/Quote

Product Details:

Temperature Range -20C to 425C
Coating Type Black Paint, Anti-Rust Oil
Yield Strength 240 MPa (Min)
Tolerance 0.5 mm
Sealing Type Butt Weld Seal
Diameter 1/2 - 48
Connection Type Butt Weld
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Carbon Steel Pipe End Cap Price And Quantity

Minimum Order Quantity 100 Piece

Edge Preparation Beveled
End Type Plain
Finish Smooth, Uniform
Hardness Max 197 HB
Packaging Wooden Cases or As Required
Manufacturing Process Seamless / Welded
Compliance ISO 9001:2015 Certified
Lead Time Ready Stock or 7-20 days
Corrosion Resistance Yes

Carbon Steel Pipe End Cap Product Specifications

Thickness 2 mm - 40 mm
Outer Diameter 21.3 mm - 1219 mm
Diameter 1/2 - 48
Product Type Pipe End Cap
Tensile Strength 415 MPa (Min)
Section Shape Circular
Standard ANSI B16.9, ASME, DIN, JIS
Connection Type Butt Weld
Flexibility Rigid
Color Black
Temperature Range -20C to 425C
Coating Type Black Paint, Anti-Rust Oil
Connection Welded
Shape Round
Rated Pressure Sch 10 to Sch 160
Length Customizable / Standard as per pipe size
Tolerance 0.5 mm
Material Carbon Steel
Sealing Type Butt Weld Seal
Material Grade ASTM A234 WPB, A106, A53
Surface Treatment Black Painted / Anti-Rust Oil Coated
Application Oil & Gas, Water Supply, Petrochemical, Power Plant
Usage Sealing pipe ends, pressure containment
Yield Strength 240 MPa (Min)

Edge Preparation Beveled
End Type Plain
Finish Smooth, Uniform
Hardness Max 197 HB
Packaging Wooden Cases or As Required
Manufacturing Process Seamless / Welded
Compliance ISO 9001:2015 Certified
Lead Time Ready Stock or 7-20 days
Corrosion Resistance Yes

Carbon Steel Pipe End Cap Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Other Products in 'Buttweld Pipe Fittings' category

Carbon Steel Pipe Cross Minimum Order Quantity : 100 Tensile Strength : 415655 MPa (depending on grade) Standard : Other, ASTM A234 / ASME B16.9 / DIN / JIS / EN Section Shape : Round Connection Type : Butt Weld / Threaded / Socket Weld Flexibility : Rigid Thickness : 3mm 20mm (customizable) Outer Diameter : 1/2 inch to 48 inch (DN15DN1200) Diameter : Up to 48 inch Product Type : Other, Pipe Cross Tolerance : 1% or as per standard specification Material : Carbon Steel Sealing Type : Metal to Metal Material Grade : A234 WPB / A420 WPL6 / A860 WPHY Application : other, Oil & Gas, Petrochemical, Power Plant, Water Treatment, Construction Surface Treatment : Other, Black Painted / Antirust Coated / Galvanized Yield Strength : 240 MPa min (depends on material) Usage : Pipe fitting for fluid transmission Color : Black / Silver (for galvanized) Temperature Range : 29C to 425C Connection : Other, Butt Weld / Socket Weld / Threaded Shape : Other, Cross Rated Pressure : Sch10 to Sch160 / Up to 2500 psi Length : Standard or Custom Lengths Thread Type : NPT / BSP (for threaded type) Coating Type : Black Paint / Hot Dip Galvanized / Epoxy

Send Inquiry

SS Stub End Lap Joint Minimum Order Quantity : 100 Tensile Strength : 520 MPa min Standard : Other, ASTM A403 / ASME B16.9 Section Shape : Other, Cylindrical Connection Type : Lap Joint Flexibility : Rigid Thickness : 2 mm 10 mm Outer Diameter : 1/2 inch to 24 inch Diameter : 15 mm 600 mm Product Type : Other, SS Stub End Lap Joint Tolerance : 0.2 mm Material : Stainless Steel Sealing Type : Metal to Metal Material Grade : 304 / 304L / 316 / 316L / 321 / 347 Application : other, Oil & Gas, Chemical, Petrochemical, Power Plant, Water Treatment Surface Treatment : Other, Polished Yield Strength : 205 MPa min Usage : Pipe Fitting / Flange Joint Color : Silver Temperature Range : 20C to 800C Connection : Other, Welded Shape : Round Rated Pressure : PN6 to PN40 Length : Custom/As Per Requirement Thread Type : Not Threaded (Butt Welded) Bend Radius : Standard

Send Inquiry

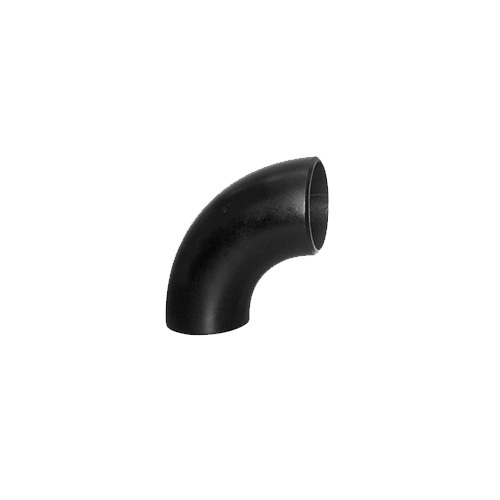

Carbon Steel Pipe Elbow Minimum Order Quantity : 100 Tensile Strength : 415 MPa Standard : Other, ASTM A234 / ASME B16.9 Section Shape : Round Connection Type : Butt Weld Flexibility : Rigid Thickness : 3 mm to 25 mm Outer Diameter : 1/2 inch to 48 inch Diameter : DN15DN1200 Product Type : Other, Pipe Elbow Tolerance : 0.05 mm Material : Carbon Steel Sealing Type : Metal to Metal Material Grade : A234 WPB, A420 WPL6 Application : other, Water, Gas, Oil Transmission Surface Treatment : Other, Black Painted, Antirust Coated Yield Strength : 240 MPa Usage : Pipeline Fittings, Oil & Gas, Power Plants Color : Black Temperature Range : 30C to +425C Connection : Other, Welded Shape : Other, Elbow (Curved) Rated Pressure : PN10PN100, SCH10SCH160 Length : As Per Requirement Coating Type : Black Varnish Bend Radius : 1.5D, 3D

Send Inquiry

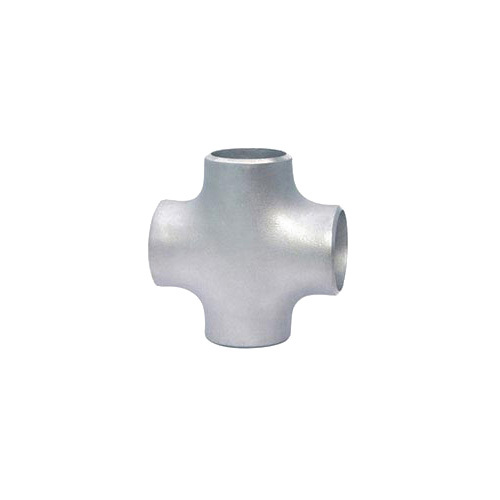

Stainless Steel Pipe Cross Minimum Order Quantity : 100 Tensile Strength : 520 MPa min Standard : Other, ASTM A403 / ASME SA403 Section Shape : Round Connection Type : Welded / Threaded Flexibility : Rigid Thickness : 2 mm 10 mm (customizable) Outer Diameter : 1/2 24 (customizable) Diameter : 12.7 mm 609.6 mm Product Type : Other, Stainless Steel Pipe Cross Tolerance : 0.1 mm Material : Stainless Steel Sealing Type : Metaltometal Material Grade : SS304, SS316, SS316L, SS321 Application : other, Oil & Gas, Petrochemical, Power, Water Treatment Surface Treatment : Other, Polished / Pickled Yield Strength : 205 MPa min Usage : Industrial piping, fluid distribution Color : Silver Temperature Range : 20C to +550C Connection : Other, Buttweld / Socket Weld / Threaded Shape : Other, Cross (Fourway) Rated Pressure : Up to 6000 PSI Length : Custom as per requirement Thread Type : NPT / BSP (for threaded variants) Coating Type : No coating (natural finish)

Send Inquiry
