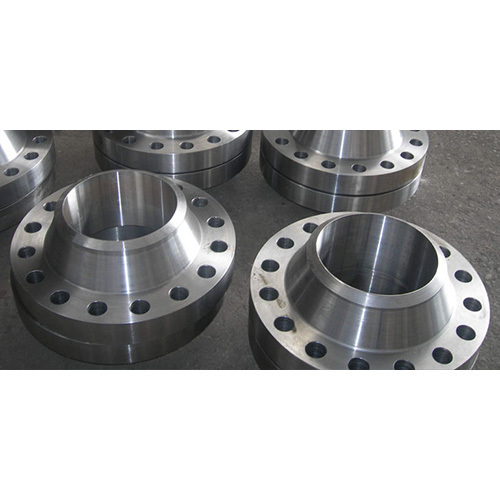

Weld Neck Flange

Get a Price/Quote

Product Details:

Purity Solid Metal Alloy
Feature High Strength, Corrosion Resistant, Leak Proof
Grade ASTM A182 F304/F316, A105, F11, F22, F51, F53
Dimension (L*W*H) Custom as per standard or drawing
Application Oil & Gas, Petrochemical, Power Plant, Water Supply, Shipbuilding
Product Type Weld Neck Flange
Material Carbon Steel, Stainless Steel, Alloy Steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Weld Neck Flange Price And Quantity

Minimum Order Quantity 100 Piece

Face Type Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Corrosion Protection Electro Galvanized/Oiled
Finish Smooth Machined
Temperature Range -29C to 600C
Thickness As per Standard Schedule
Bolt Hole Diameter As per Standard Specification
Tensile Strength 415 MPa min (varies by grade)
Hardness 187 HB to 235 HB
Manufacturing Process Forged and Machined
End Connection Butt Weld

Weld Neck Flange Product Specifications

Application Oil & Gas, Petrochemical, Power Plant, Water Supply, Shipbuilding
Color Silver/Grey
Standard ANSI B16.5, ASTM A105, ASME, DIN, JIS, BS, EN
Dimension (L*W*H) Custom as per standard or drawing
Surface Polished, Anti-rust Oil Coated
Pressure CLASS 150/300/600/900/1500
Shape Round
Size 1/2 Inch to 48 Inch (DN15-DN1200)
Grade ASTM A182 F304/F316, A105, F11, F22, F51, F53
Feature High Strength, Corrosion Resistant, Leak Proof
Technics Forged
Material Carbon Steel, Stainless Steel, Alloy Steel
Product Type Weld Neck Flange
Purity Solid Metal Alloy
Connection Welded

Face Type Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Corrosion Protection Electro Galvanized/Oiled
Finish Smooth Machined
Temperature Range -29C to 600C
Thickness As per Standard Schedule
Bolt Hole Diameter As per Standard Specification
Tensile Strength 415 MPa min (varies by grade)
Hardness 187 HB to 235 HB
Manufacturing Process Forged and Machined
End Connection Butt Weld

Weld Neck Flange Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Other Products in 'Metal Flanges' category

Blind Flanges Minimum Order Quantity : 100 Material : Carbon Steel, Stainless Steel, Alloy Steel Product Type : Other, Blind Flange Connection : Other, Flanged Grade : ASTM A105, A182 F304/304L/316/316L, A350 LF2 etc. Technics : Other, Forged Feature : High Strength, Corrosion Resistant, Leak Proof, Durable Pressure : 150 to 2500 LBS Shape : Round Size : 1/2 to 60 (DN15DN1500) Application : Piping Systems, Oil & Gas, Petrochemical, Power Plants, Water Treatment Surface : Other, Rust Proof, Polished Color : Metallic Silver / Natural Standard : Other, ANSI, DIN, JIS, BS, EN, GOST, ASME Dimension (L*W*H) : As per standard or customer specification Purity : 99% Metal Purity

Send Inquiry

Slip On Flange Minimum Order Quantity : 100 Material : Stainless Steel, Carbon Steel, Alloy Steel Product Type : Other, Pipe Flange Connection : Other, Welded Grade : SS304, SS316, ASTM A105, ASTM A182, ASTM A350, ASTM A516 Technics : Other, Forged Feature : Corrosion Resistant, High Strength, Durable Pressure : 150LB, 300LB, 600LB, PN6, PN10, PN16 Shape : Round Size : 1/2 to 60 (15mm to 1500mm) Application : Pipe Fitting, Water Supply, Oil & Gas, Chemical Industry, Power Plant Surface : Other, Smooth, RustProof Color : Silver, Metallic Grey Standard : Other, ANSI B16.5, ASME, DIN, JIS, BS, EN, GOST Dimension (L*W*H) : Custom or Standard as per requirement Purity : 99% (Metal Content)

Send Inquiry

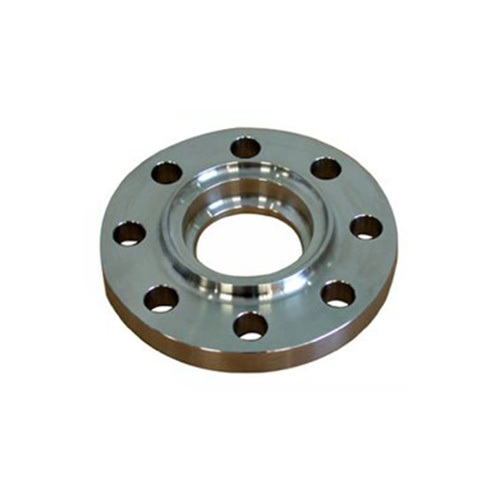

Socket Weld Flanges Minimum Order Quantity : 100 Material : Stainless Steel, Carbon Steel, Alloy Steel Product Type : Other, Socket Weld Flange Connection : Other, Socket Weld Grade : ASTM A182 F304/F316, ASTM A105, ASTM A350 LF2, A694 F52, F60 Technics : Other, Forged Feature : High strength, corrosion resistance, leakproof joint Pressure : 150# to 2500# Shape : Round Size : 1/2 inch to 24 inch (DN15 to DN600) Application : Piping, Petrochemical, Oil & gas, Power Plants Surface : Other, Smooth finish, anticorrosive coated Color : Silver/Grey Standard : Other, ANSI B16.5, DIN, JIS, EN, BS Dimension (L*W*H) : Custom/As per standard specification Purity : Metallic Alloy (as specified by grade)

Send Inquiry

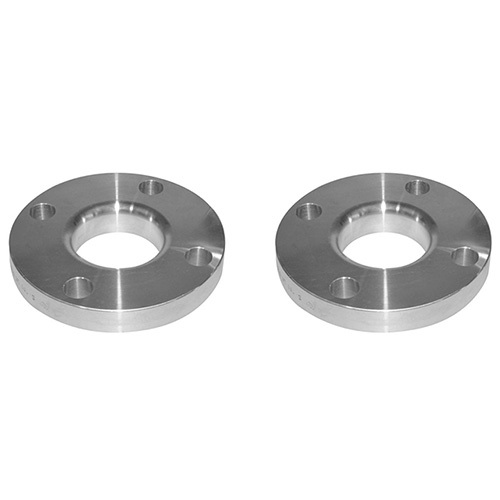

Lap Joint Flanges Minimum Order Quantity : 100 Material : Carbon Steel, Stainless Steel, Alloy Steel Product Type : Other, Lap Joint Flange Connection : Other, Lap Joint Grade : ASTM A105, A182 F304, A182 F316, A350 LF2, etc. Technics : Other, Forged / Cast Feature : Corrosionresistant, Durable, High strength, Leakproof connection Pressure : Class 150, 300, 600, 900, 1500, 2500 LBS; PN6, PN10, PN16, PN25, PN40, PN64 Shape : Round Size : 1/2 to 48 (DN15DN1200) Application : Oil & Gas, Petrochemical, Power Generation, Water Treatment, Construction Surface : Other, Rustproof oil, Black painting, Yellow painting, Zinc plating Color : Silver, Black, Yellow (surface treatment dependent) Standard : Other, ANSI B16.5, ASME B16.47, DIN, JIS, BS, EN 1092, GOST Dimension (L*W*H) : Standardized; as per flange size and pressure class Purity : Metallic compositions as per ASTM/ASME standards

Send Inquiry
