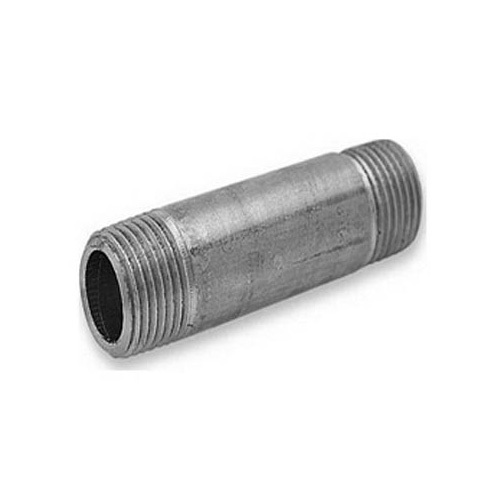

4 Inch Pipe Nipple

Get a Price/Quote

Product Details:

Temperature Range -20C to 120C
Connection Type Threaded
Flexibility Rigid
Diameter 4 inch
Sealing Type Threaded Seal with Teflon Tape or Pipe Dope
Tolerance 0.5 mm
Coating Type Hot Dip Galvanized
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

4 Inch Pipe Nipple Price And Quantity

Minimum Order Quantity 100 Piece

Hydrostatic Test Pressure 25 bar max
Operating Environment Indoor and Outdoor
Compatible Media Water, Air, Steam, Oil, Gas
End Type Male Threaded Both Ends
Weight Approx. 1.9 kg per piece
Thread Length Min. 25 mm per end
Corrosion Resistance High
Marking Size, Manufacturer, Grade on Body
Packaging Type Gunny Bag or as Specified
Manufacturing Process Welded/Seamless as per Requirement

4 Inch Pipe Nipple Product Specifications

Product Type Pipe Nipple
Connection Male Threaded
Shape Cylindrical
Bend Radius Not Applicable (Rigid Pipe)
Thread Type BSPT (British Standard Pipe Taper)
Material Grade GI Medium Class
Coating Type Hot Dip Galvanized
Yield Strength 195 MPa (min)
Tolerance 0.5 mm
Tensile Strength 320 MPa (min)
Outer Diameter 4 inch (114.3 mm)
Surface Treatment Galvanized
Usage Plumbing and Pipe Fittings
Sealing Type Threaded Seal with Teflon Tape or Pipe Dope
Material Galvanized Iron (GI)
Color Silver
Standard ASTM A53 / IS 1239
Connection Type Threaded
Flexibility Rigid
Length 150 mm (6 inch) or as required
Temperature Range -20C to 120C
Rated Pressure Up to 15 bar
Application Water, Gas, Oil pipelines
Section Shape Round
Diameter 4 inch
Thickness 4.5 mm

Hydrostatic Test Pressure 25 bar max
Operating Environment Indoor and Outdoor
Compatible Media Water, Air, Steam, Oil, Gas
End Type Male Threaded Both Ends
Weight Approx. 1.9 kg per piece
Thread Length Min. 25 mm per end
Corrosion Resistance High
Marking Size, Manufacturer, Grade on Body
Packaging Type Gunny Bag or as Specified
Manufacturing Process Welded/Seamless as per Requirement

4 Inch Pipe Nipple Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India
